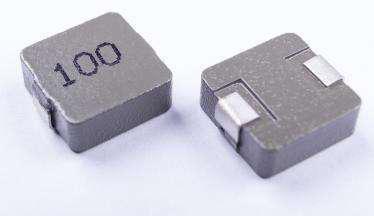

產品描述

　　1.PART NUMBERING SYSTEM
　　SHI　　0603P　　100　　 M
　　①　　　②　　　③　　?、?br /> 　　①.SERIES NAME
　　②.DIMENSIONS
　?、?INDUCTANCE VALUE(1R0:1uH,100:10uH,101:100uH).
　?、?TOLERANCE CODE: J:±5% K:±10% L:±15% M:±20% P:±25% N:±30%.
　　2.FEATURES:
　　◆　Low profile and low DCR.
　　◆　Shielded construction.
　　◆　handles high transient current spikes without saturation
　　◆　frequency up to 3MHz
　　◆　Ultra Low buzz noise, due to composite construction
　　3.APPLICATIONS
　　●　PDA/Notebook/Desktop, and server applications
　　●　DC/DC converters in distributed power systems
　　●　DC/DC converter for Field Programmable Gate Array(FPGA)
　　4.Test instruments
　　■　L tested by Wayne kerr 3260B LCR meter with Wayne kerr 3265B bias current source.
　　■　DCR tested by Milli-ohm meter.

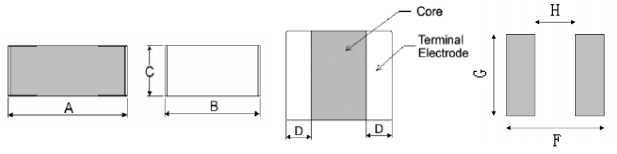

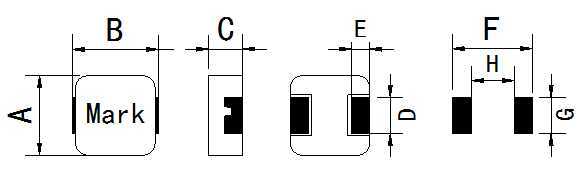

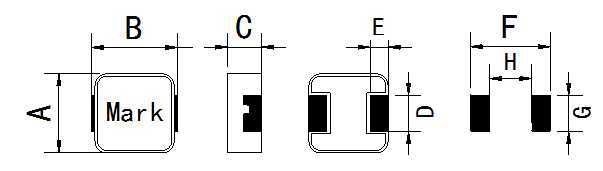

SHAPES AND DIMENSIONS Unit：mm	產品圖示

Series	Dimensions（mm）								Shape
Series	A	B	C	D	E	F	G	H	Shape
SHI201610	2.0±0.2	1.6±0.2	1.0 Max	0.5±0.2	/	2.3 Ref	1.6 Ref	0.9 Ref	Fig:1
SHI252010	2.5±0.2	2.0±0.2	1.0 Max	0.6±0.2	/	2.8 Ref	2.0 Ref	1.2 Ref	Fig:1
SHI0402P	4.1±0.3	4.6±0.3	2.0 Max	1.5±0.5	1.0±0.5	5.2 Ref	2.5 Ref	2.2 Ref	Fig:2
SHI0503P	5.4±0.3	5.7±0.3	3.0 Max	2.0±0.5	1.5±0.5	6.0 Ref	2.5 Ref	2.2 Ref	Fig:2
SHI0603P	6.6±0.3	7.1±0.3	3.0 Max	3.0±0.5	1.6±0.5	8.4 Ref	3.5 Ref	3.7 Ref	Fig:2
SHI0603K	6.6±0.3	7.1±0.3	3.0 Max	3.0±0.5	1.6±0.5	8.4 Ref	3.5 Ref	3.7 Ref	Fig:3
SHI0604P	6.6±0.3	7.1±0.3	4.0 Max	3.0±0.5	1.6±0.5	8.4 Ref	3.5 Ref	3.7 Ref	Fig:2
SHI0605P	6.6±0.3	7.1±0.3	5.0 Max	3.0±0.5	1.6±0.5	8.4 Ref	3.5 Ref	3.7 Ref	Fig:2
SHI1040P	10.1±0.3	11.6 Max	4.0 Max	3.0±0.5	2.5±0.5	13.0 Ref	4.0 Ref	6.0 Ref	Fig:2
SHI1050P	10.1±0.3	11.6 Max	5.0 Max	3.0±0.5	2.0±0.5	13.0 Ref	4.0 Ref	7.0 Ref	Fig:2
SHI1250P	12.8±0.5	13.5±1.0	5.0 Max	3.8±0.5	2.5±0.5	14.1 Ref	4.5 Ref	8.0 Ref	Fig:2
SHI1265P	12.8±0.5	13.5±1.0	6.5 Max	3.5±0.5	2.5±0.5	14.1 Ref	4.5 Ref	8.0 Ref	Fig:2

ELECTRICAL CHARACTERISTICS
Part Number	Ls（uH） 2MHz/0.2V	DCR（mΩ）Max	Isat（A）	Irms（A）	Marking
SHI201610-R24	0.24	40.0	4.5	6.0	R24
SHI201610-R33	0.33	48.0	3.8	5.5	R33
SHI201610-R47	0.47	54.0	3.6	5.0	R47
SHI201610-R56	0.56	59.0	3.3	4.6	R56
SHI201610-R68	0.68	72.0	3.0	4.2	R68
SHI201610-1R0	1.0	96.0	2.3	3.4	1R0
SHI201610-1R5	1.5	150.0	2.0	2.8	1R5
SHI201610-2R2	2.2	204.0	1.7	2.4	2R2

ELECTRICAL CHARACTERISTICS
Part Number	Ls（uH） 2MHz/0.2V	DCR（mΩ）Max	Isat（A）Typ	Irms（A）Typ	Marking
SHI252010-R24	0.24	40.0	5.0	9.5	R24
SHI252010-R33	0.33	31.0	4.4	6.0	R33
SHI252010-R47	0.47	35.0	3.9	4.7	R47
SHI252010-R68	0.68	48.0	3.5	4.0	R68
SHI252010-1R0	1.0	65.0	3.0	3.6	1R0
SHI252010-1R5	1.5	94.0	2.4	3.3	1R5
SHI252010-2R2	2.2	120.0	2.1	2.7	2R2

ELECTRICAL CHARACTERISTICS
Part Number	Ls（uH） 100KHZ/1V	DCR（mΩ）Max	Isat（A）Typ	Irms（A）Typ	Marking
SHI0402P-R10	0.10	4.0	25.0	12.0	R10
SHI0402P-R22	0.22	6.6	12.5	9.0	R22
SHI0402P-R47	0.47	14.0	9.5	7.0	R47
SHI0402P-R56	0.56	16.0	9.3	6.5	R56
SHI0402P-R68	0.7	21.0	8.0	5.2	R68
SHI0402P-1R0	1.0	27.0	7.0	4.5	1R0
SHI0402P-1R5	1.5	46.0	6.0	4.0	1R5
SHI0402P-2R2	2.2	58.0	5.0	3.0	2R2
SHI0402P-3R3	3.3	87.0	4.0	2.5	3R3
SHI0402P-4R7	4.7	126.0	3.0	2.2	4R7
SHI0402P-6R8	6.8	135.0	2.5	1.6	6R8
SHI0402P-100	10.0	258.0	2.0	1.2	100

ELECTRICAL CHARACTERISTICS
Part Number	Ls（uH） 100KHZ/1V	DCR（mΩ）Max	Isat（A）Typ	Irms（A）Typ	Marking
SHI0503P-R68	0.68	12.0	14.0	8.0	R68
SHI0503P-1R0	1.00	15.0	11.0	7.0	1R0
SHI0503P-1R5	1.50	25.0	10.0	6.0	1R5
SHI0503P-2R2	2.20	35.0	8.0	5.0	2R2
SHI0503P-3R3	3.3	46.0	7.0	4.5	3R3
SHI0503P-4R7	4.7	60.0	6.0	4.0	4R7
SHI0503P-100	10.0	126.0	4.5	1.5	100

ELECTRICAL CHARACTERISTICS
Part Number	Ls（uH） 100KHZ/1V	DCR（mΩ）Max	Isat（A）Typ	Irms（A）Typ	Marking
SHI0603P-R47	0.47	5.5	27.0	14.0	R47
SHI0603P-1R0	1.00	10.0	22.0	12.0	1R0
SHI0603P-1R5	1.50	15.0	18.0	9.5	1R5
SHI0603P-2R2	2.20	20.0	14.0	8.5	2R2
SHI0603P-3R3	3.3	35.0	12.0	6.0	3R3
SHI0603P-4R7	4.7	40.0	9.0	5.5	4R7
SHI0603P-5R6	5.6	40.0	8.0	4.5	5R6
SHI0603P-6R8	6.8	60	8.0	4.5	6R8
SHI0603P-8R2	8.2	60	5.8	4.5	8R2
SHI0603P-100	10.0	68	5.5	4.0	100
SHI0603P-150	15.0	122	5.0	3.0	150
SHI0603P-220	22.0	145	3.2	3.0	220
SHI0603P-330	33.0	270	3.0	2.0	330

ELECTRICAL CHARACTERISTICS
Part Number	Ls（uH） 100KHZ/1V	DCR（mΩ）Max	Isat（A）Typ	Irms（A）Typ	Marking
SHI0603K-R22	0.22	2.8	40.0	20.0	R22
SHI0603K-R47	0.47	5.5	27.0	14.0	R47
SHI0603K-R68	0.68	6.3	24.0	13.0	R68
SHI0603K-R82	0.82	8.0	23.0	12.5	R82
SHI0603K-1R0	1.0	10.0	22.0	12.0	1R0
SHI0603K-1R5	1.5	15.0	18.0	9.5	1R5
SHI0603K-2R2	2.2	20.0	14.0	8.5	2R2
SHI0603K-3R3	3.3	35	12.0	6.0	3R3
SHI0603K-4R7	4.7	40	9.0	5.5	4R7
SHI0603K-6R8	6.8	60	8.0	4.5	6R8
SHI0603K-100	10.0	68	5.5	4.0	100
SHI0603K-150	15.0	122	5.0	3.0	150
SHI0603K-220	22.0	145	3.2	3.0	220
SHI0603K-330	33.0	270	3.0	2.0	330

ELECTRICAL CHARACTERISTICS
Part Number	Ls（uH） 100KHZ/1V	DCR（mΩ）Max	Isat（A）Typ	Irms（A）Typ	Marking
SHI0604P-2R2	2.20	18.0	12.0	9.0	2R2
SHI0604P-100	10.00	62.0	5.0	4.5	100
SHI0604P-220	22.00	125.0	4.0	3.0	220

ELECTRICAL CHARACTERISTICS
Part Number	Ls（uH） 100KHZ/1V	DCR（mΩ）Max	Isat（A）Typ	Irms（A）Typ	Marking
SHI0605P-1R5	1.50	8.5	10.0	10.0	1R5
SHI0605P-2R2	2.20	12.5	9.5	9.5	2R2
SHI0605P-3R3	3.30	20.9	9.0	8.5	3R3
SHI0605P-4R7	4.7	27	8.0	6.5	4R7
SHI0605P-100	10.0	55	6.0	4.5	100
SHI0605P-220	22.0	130	3.5	2.6	220
SHI0605P-470	47.0	290	2.8	2.0	470

ELECTRICAL CHARACTERISTICS
Part Number	Ls（uH） 100KHZ/1V	DCR（mΩ）Max	Isat（A）Typ	Irms（A）Typ	Marking
SHI1040P-R68	0.68	1.6	30.0	27.0	R68
SHI1040P-1R0	1.00	3.1	26.0	20.0	1R0
SHI1040P-1R5	1.50	4.2	22.0	16.0	1R5
SHI1040P-2R2	2.20	7.0	16.0	14.0	2R2
SHI1040P-3R3	3.30	13.2	12.0	11.0	3R3
SHI1040P-4R7	4.70	16.5	12.0	9.0	4R7
SHI1040P-6R8	6.80	25.0	10.0	6.0	6R8
SHI1040P-100	10.00	30.0	7.0	5.5	100
SHI1040P-150	15.00	45.0	6.0	5.3	150
SHI1040P-220	22.00	72.0	5.5	5.0	220
SHI1040P-330	33.00	110.0	5.0	3.2	330
SHI1040P-470	47.00	158.0	4.5	2.8	470
SHI1040P-101	100.00	300.0	2.0	1.5	101

ELECTRICAL CHARACTERISTICS
Part Number	Ls（uH） 100KHZ/1V	DCR（mΩ）Max	Isat（A）Typ	Irms（A）Typ	Marking
SHI1050P-1R5	1.50	4.0	24.0	18.0	1R5
SHI1050P-2R2	2.20	7.0	20.0	14.0	2R2
SHI1050P-3R3	3.30	11.5	16.0	12.0	3R3
SHI1050P-4R7	4.70	16.0	16.0	10.0	4R7
SHI1050P-100	10.00	30.0	8.5	7.2	100
SHI1050P-150	15.00	45.0	8.0	6.2	150
SHI1050P-220	22.00	60.0	6.0	3.5	220
SHI1050P-330	33.00	95.0	4.5	3.5	330
SHI1050P-470	47.00	145.0	4.0	3.3	470

ELECTRICAL CHARACTERISTICS
Part Number	Ls（uH） 100KHZ/1V	DCR（mΩ）Max	Isat（A）Typ	Irms（A）Typ	Marking
SHI1250P-R47	0.47	1.2	45.0	25.0	R47
SHI1250P-R68	0.68	1.6	38.0	23.0	R68
SHI1250P-R82	0.82	2.2	36.0	22.0	R82
SHI1250P-1R0	1.00	2.5	35.0	20.0	1R0
SHI1250P-1R2	1.20	2.6	32.0	16.0	1R2
SHI1250P-1R5	1.50	3.1	30.0	15.0	1R5
SHI1250P-2R2	2.20	6.0	26.0	14.0	2R2
SHI1250P-3R3	3.30	7.6	24.0	13.0	3R3
SHI1250P-4R7	4.70	9.0	18.0	12.0	4R7
SHI1250P-6R8	6.80	14.4	13.0	8.0	6R8
SHI1250P-100	10.00	24.0	11.0	7.0	100
SHI1250P-150	15.00	31.2	9.0	5.0	150
SHI1250P-220	22.00	35.0	7.0	4.0	220
SHI1250P-330	33.00	63.0	6.0	3.0	330
SHI1250P-470	47.00	102.0	5.0	2.5	470

ELECTRICAL CHARACTERISTICS
Part Number	Ls（uH） 100KHZ/1V	DCR（mΩ）Max	Isat（A）Typ	Irms（A）Typ	Marking
SHI1265P-R47	0.47	1.3	60.0	35.0	R47
SHI1265P-3R3	3.30	7.5	25.0	17.0	3R3
SHI1265P-5R6	5.60	12.0	19.0	12.0	5R6
SHI1265P-6R8	6.80	14.0	18.0	11.5	6R8
SHI1265P-220	22.00	39.0	7.5	5.0	220
★1: All test data is referenced to 25°C ambient。
★2: Rated current: Isat or Irms, whichever is smaller。
★3: Isat: DC current at which the inductance drops approximate 35% from its value without current。
★4: Irms: DC current that causes the temperature rise (△T =40°C) from 25°C ambient。
★5: Absolute maximum voltage 30VDC。
