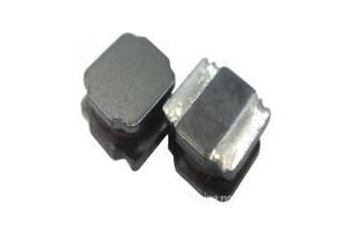

SMD POWER INDUCTORS NR25系列
NR25 SERIES
■ FEATURES/特性
● Magnetically shielded construction (閉磁路構造設計)
● Compact and thin (輕便薄小)
● Strong ability to resist EMI(抗EMI能力強)
● Drop impact resistance is strong, durable(抗沖擊性強,經久耐用)
■ Application (用途)
● Mobile networks and digital movie camera; Flat-panel TVS, set-top boxes, blu-ray DVD; Notebook computers, desktop computers, servers, graphics CARDS; Portable game consoles, personal navigation system, multimedia; Automotive products; Communication equipment(移動網絡和數字電影攝影機;平板電視,機頂盒,藍光DVD、筆記本電腦、臺式電腦、服務器、顯卡;便攜式游戲機,個人導航系統,多媒體,汽車產品;通信設備)
■ Product Identification/產品識別
CR 252012 3R3 M S Z
(1) (2) (3) (4） （5） ?。?）
1.Series name/產品名稱
2.Dimensions/產品尺寸
3.Inductance value/電感值
4.Product name/允許公差（J 5%, K 10%, L 15%, M 20%, N 30%）
5.Internal Serial No./內部序列號（S：系列品，T:特殊品）
6.The packing way/包裝方式（Z:冷封裝，R:熱封裝）

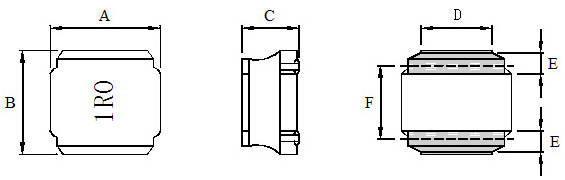

■ Mechanical dimensions/機械尺寸
Unit In mm
| Type | A | B | C | D | E | E |
| ±0.1 | ±0.1 | (max) | ±0.2 | ±0.2 | ±0.2 | |
| NR252010 | 2.0 | 2.5 | 1.0 | 1.5 | 0.8 | 0.8 |
| NR252012 | 2.0 | 2.5 | 1.2 | 1.5 | 0.8 | 0.8 |
■ Electrical Characteristics for NR252010 Series/NR252010系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR252010-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 90.0 | 1.85 |
| NR252010-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 152.0 | 1.80 |
| NR252010-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 174.0 | 1.20 |
| NR252010-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 273.0 | 1.05 |
| NR252010-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 469.0 | 0.95 |
| NR252010-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 747.0 | 0.78 |
| NR252010-100□-S-Z | 10.0 | 100KHZ/0.25V | 910.0 | 0.65 |
★ Operating Temp. : －40℃ ~ ＋85℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR252012 Series/NR252012系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR252012-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 85.0 | 2.68 |
| NR252012-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 113.0 | 2.24 |
| NR252012-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 165.0 | 1.85 |
| NR252012-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 200.0 | 1.61 |
| NR252012-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 315.0 | 1.18 |
| NR252012-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 447.0 | 0.98 |
| NR252012-8R2□-S-Z | 8.2 | 100KHZ/0.25V | 506.0 | 0.92 |
| NR252012-100□-S-Z | 10.0 | 100KHZ/0.25V | 575.0 | 0.88 |
★ Operating Temp. : －40℃ ~ ＋85℃
★Inductance drop=30% typ. at IDC.
SMD POWER INDUCTORS NR30系列
NR30 SERIES
■ FEATURES/特性
● Magnetically shielded construction (閉磁路構造設計)
● Compact and thin (輕便薄小)
● Strong ability to resist EMI(抗EMI能力強)
● Drop impact resistance is strong, durable(抗沖擊性強,經久耐用)
■ Application (用途)
● Mobile networks and digital movie camera; Flat-panel TVS, set-top boxes, blu-ray DVD; Notebook computers, desktop computers, servers, graphics CARDS; Portable game consoles, personal navigation system, multimedia; Automotive products; Communication equipment(移動網絡和數字電影攝影機;平板電視,機頂盒,藍光DVD、筆記本電腦、臺式電腦、服務器、顯卡;便攜式游戲機,個人導航系統,多媒體,汽車產品;通信設備)
■ Product Identification/產品識別
CR 3012 3R3 M S Z
(1) (2) (3) (4） （5） ?。?）
1.Series name/產品名稱
2.Dimensions/產品尺寸
3.Inductance value/電感值
4.Product name/允許公差（J 5%, K 10%, L 15%, M 20%, N 30%）
5.Internal Serial No./內部序列號（S：系列品，T:特殊品）
6.The packing way/包裝方式（Z:冷封裝，R:熱封裝）

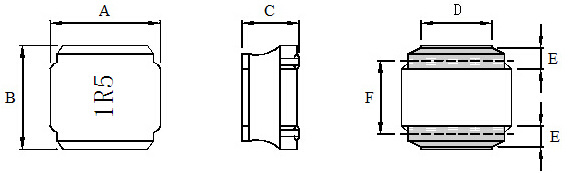

■ Mechanical dimensions/機械尺寸
Unit In mm
| Type | A | B | C | D | E | F |
| ±0.2 | ±0.2 | (max) | ±0.2 | ±0.2 | ±0.2 | |
| NR3010 | 3.0 | 3.0 | 1.0 | 2.5 | 2.5 | 1.5 |
| NR3012 | 3.0 | 3.0 | 1.2 | 2.5 | 2.5 | 1.5 |
| NR3015 | 3.0 | 3.0 | 1.5 | 2.5 | 2.5 | 1.5 |
| NR3018 | 3.0 | 3.0 | 1.85 | 2.5 | 2.5 | 1.5 |
| NR3020 | 3.0 | 3.0 | 2.0 | 2.5 | 2.5 | 1.5 |
■ Electrical Characteristics for NR3010 Series/NR3010系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR3010-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 65.0 | 1.40 |
| NR3010-1R2□-S-Z | 1.2 | 100KHZ/0.25V | 65.0 | 1.25 |
| NR3010-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 80.0 | 1.20 |
| NR3010-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 110.0 | 1.15 |
| NR3010-2R7□-S-Z | 2.7 | 100KHZ/0.25V | 130.0 | 1.00 |
| NR3010-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 145.0 | 0.97 |
| NR3010-3R6□-S-Z | 3.6 | 100KHZ/0.25V | 165.0 | 0.95 |
| NR3010-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 225.0 | 0.75 |
| NR3010-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 305.0 | 0.55 |
| NR3010-100□-S-Z | 10.0 | 100KHZ/0.25V | 400.0 | 0.50 |
| NR3010-120□-S-Z | 12.0 | 100KHZ/0.25V | 505.0 | 0.43 |
| NR3010-150□-S-Z | 15.0 | 100KHZ/0.25V | 610.0 | 0.42 |
| NR3010-220□-S-Z | 22.0 | 100KHZ/0.25V | 930.0 | 0.35 |
★ Operating Temp. : －40℃ ~ ＋85℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR3012 Series/NR3012系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR3012-R47□-S-Z | 0.47 | 100KHZ/0.25V | 33 | 2.2 |
| NR3012-R82□-S-Z | 0.82 | 100KHZ/0.25V | 40 | 2.05 |
| NR3012-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 48.0 | 1.90 |
| NR3012-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 55.0 | 1.62 |
| NR3012-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 75.0 | 1.20 |
| NR3012-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 100.0 | 1.05 |
| NR3012-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 120.0 | 0.90 |
| NR3012-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 190.0 | 0.75 |
| NR3012-100□-S-Z | 10.0 | 100KHZ/0.25V | 265.0 | 0.60 |
| NR3012-150□-S-Z | 15.0 | 100KHZ/0.25V | 430.0 | 0.45 |
| NR3012-220□-S-Z | 22.0 | 100KHZ/0.25V | 630.0 | 0.42 |
★ Operating Temp. : －40℃ ~ ＋85℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR3015 Series/NR3015系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR3015-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 37.0 | 2.32 |
| NR3015-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 50.0 | 2.00 |
| NR3015-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 60.0 | 1.60 |
| NR3015-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 80.0 | 1.32 |
| NR3015-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 125.0 | 1.10 |
| NR3015-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 200.0 | 0.85 |
| NR3015-100□-S-Z | 10.0 | 100KHZ/0.25V | 250.0 | 0.72 |
| NR3015-220□-S-Z | 22.0 | 100KHZ/0.25V | 460.0 | 0.52 |
Operating Temp. : －40℃ ~ ＋85℃
★Inductance drop=30% typ. at IDC.
SMD POWER INDUCTORS NR40系列
NR40 SERIES
■ FEATURES/特性
● Magnetically shielded construction (閉磁路構造設計)
● Compact and thin (輕便薄小)
● Strong ability to resist EMI(抗EMI能力強)
● Drop impact resistance is strong, durable(抗沖擊性強,經久耐用)
■ Application (用途)
● Mobile networks and digital movie camera; Flat-panel TVS, set-top boxes, blu-ray DVD; Notebook computers, desktop computers, servers, graphics CARDS; Portable game consoles, personal navigation system, multimedia; Automotive products; Communication equipment(移動網絡和數字電影攝影機;平板電視,機頂盒,藍光DVD、筆記本電腦、臺式電腦、服務器、顯卡;便攜式游戲機,個人導航系統,多媒體,汽車產品;通信設備)
■ Product Identification/產品識別
CR 4012 3R3 M S Z
(1) (2) (3) (4） ?。?） ?。?）
1.Series name/產品名稱
2.Dimensions/產品尺寸
3.Inductance value/電感值
4.Product name/允許公差（J 5%, K 10%, L 15%, M 20%, N 30%）
5.Internal Serial No./內部序列號（S：系列品，T:特殊品）
6.The packing way/包裝方式（Z:冷封裝，R:熱封裝）

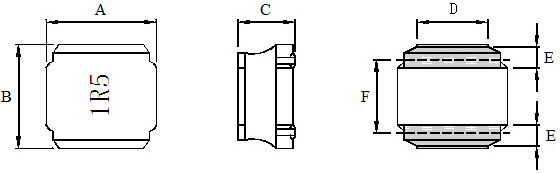

■ Mechanical dimensions/機械尺寸
Unit In mm
| Type | A | B | C | D | E | F |
| ±0.2 | ±0.2 | (max) | ±0.2 | ±0.2 | ±0.2 | |
| NR4010 | 4.0 | 4.0 | 1.00 | 3.30 | 0.95 | 2.10 |
| NR4012 | 4.0 | 4.0 | 1.20 | 3.30 | 0.95 | 2.10 |
| NR4015 | 4.0 | 4.0 | 1.65 | 3.30 | 0.95 | 2.10 |
| NR4018 | 4.0 | 4.0 | 1.80 | 3.30 | 0.95 | 2.10 |
| NR4020 | 4.0 | 4.0 | 2.00 | 3.30 | 0.95 | 2.10 |
| NR4030 | 4.0 | 4.0 | 3.00 | 3.30 | 0.95 | 2.10 |
■ Electrical Characteristics for NR4010 Series/NR4010系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR4010-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 56.0 | 2.00 |
| NR4010-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 70.0 | 1.68 |
| NR4010-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 85.0 | 1.20 |
| NR4010-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 100.0 | 1.10 |
| NR4010-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 140.0 | 0.95 |
| NR4010-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 200.0 | 0.80 |
| NR4010-100□-S-Z | 10.0 | 100KHZ/0.25V | 300.0 | 0.62 |
| NR4010-150□-S-Z | 15.0 | 100KHZ/0.25V | 430.0 | 0.54 |
| NR4010-220□-S-Z | 22.0 | 100KHZ/0.25V | 570.0 | 0.45 |
★ Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR4012 Series/NR4012系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR4012-R82□-S-Z | 0.82 | 100KHZ/0.25V | 50.0 | 3.02 |
| NR4012-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 50.0 | 2.61 |
| NR4012-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 65.0 | 2.10 |
| NR4012-1R8□-S-Z | 1.8 | 100KHZ/0.25V | 80.0 | 2.12 |
| NR4012-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 85.0 | 1.90 |
| NR4012-2R7□-S-Z | 2.7 | 100KHZ/0.25V | 90.0 | 1.76 |
| NR4012-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 110.0 | 1.72 |
| NR4012-3R6□-S-Z | 3.6 | 100KHZ/0.25V | 110.0 | 1.20 |
| NR4012-4R3□-S-Z | 4.3 | 100KHZ/0.25V | 140.0 | 1.58 |
| NR4012-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 145.0 | 1.15 |
| NR4012-5R1□-S-Z | 5.1 | 100KHZ/0.25V | 155.0 | 1.55 |
| NR4012-5R6□-S-Z | 5.6 | 100KHZ/0.25V | 160.0 | 1.00 |
| NR4012-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 198.0 | 0.85 |
| NR4012-100□-S-Z | 10.0 | 100KHZ/0.25V | 265.0 | 0.80 |
| NR4012-120□-S-Z | 12.0 | 100KHZ/0.25V | 290.0 | 0.66 |
| NR4012-150□-S-Z | 15.0 | 100KHZ/0.25V | 340.0 | 0.56 |
| NR4012-180□-S-Z | 18.0 | 100KHZ/0.25V | 470.0 | 0.55 |
| NR4012-220□-S-Z | 22.0 | 100KHZ/0.25V | 587.0 | 0.46 |
★ Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR4015 Series/NR4015系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR4015-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 40.0 | 2.70 |
| NR4015-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 53.0 | 2.10 |
| NR4015-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 75.0 | 1.90 |
| NR4015-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 100.0 | 1.45 |
| NR4015-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 135.0 | 1.30 |
| NR4015-100□-S-Z | 10.0 | 100KHZ/0.25V | 200.0 | 1.10 |
| NR4015-150□-S-Z | 15.0 | 100KHZ/0.25V | 300.0 | 0.90 |
| NR4015-220□-S-Z | 22.0 | 100KHZ/0.25V | 400.0 | 0.72 |
Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR4018 Series/NR4018系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR4018-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 23.0 | 4.50 |
| NR4018-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 33.0 | 3.35 |
| NR4018-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 44.0 | 2.70 |
| NR4018-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 70.0 | 2.45 |
| NR4018-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 90.0 | 1.70 |
| NR4018-5R6□-S-Z | 5.6 | 100KHZ/0.25V | 103.0 | 1.60 |
| NR4018-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 124.0 | 1.45 |
| NR4018-100□-S-Z | 10.0 | 100KHZ/0.25V | 200.0 | 1.30 |
| NR4018-150□-S-Z | 15.0 | 100KHZ/0.25V | 268.0 | 0.94 |
| NR4018-220□-S-Z | 22.0 | 100KHZ/0.25V | 390.0 | 0.80 |
| NR4018-330□-S-Z | 33.0 | 100KHZ/0.25V | 560.0 | 0.65 |
| NR4018-470□-S-Z | 47.0 | 100KHZ/0.25V | 756.0 | 0.57 |
Operating Temp. : －45℃ ~ ＋125℃
SMD POWER INDUCTORS NR50系列
NR50 SERIES
■ FEATURES/特性
● Magnetically shielded construction (閉磁路構造設計)
● Compact and thin (輕便薄小)
● Strong ability to resist EMI(抗EMI能力強)
● Drop impact resistance is strong, durable(抗沖擊性強,經久耐用)
■ Application (用途)
● Mobile networks and digital movie camera; Flat-panel TVS, set-top boxes, blu-ray DVD; Notebook computers, desktop computers, servers, graphics CARDS; Portable game consoles, personal navigation system, multimedia; Automotive products; Communication equipment(移動網絡和數字電影攝影機;平板電視,機頂盒,藍光DVD、筆記本電腦、臺式電腦、服務器、顯卡;便攜式游戲機,個人導航系統,多媒體,汽車產品;通信設備)
■ Product Identification/產品識別
CR 5012 150 M S Z
(1) (2) (3) (4） ?。?） ?。?）
1.Series name/產品名稱
2.Dimensions/產品尺寸
3.Inductance value/電感值
4.Product name/允許公差（J 5%, K 10%, L 15%, M 20%, N 30%）
5.Internal Serial No./內部序列號（S：系列品，T:特殊品）
6.The packing way/包裝方式（Z:冷封裝，R:熱封裝）
■ Mechanical dimensions/機械尺寸
Unit In mm
| Type | A | B | C | D | E | F |
| ±0.2 | ±0.2 | (max) | ±0.2 | ±0.2 | ±0.2 | |
| NR5015 | 5.0 | 5.0 | 1.50 | 4.00 | 1.25 | 2.50 |
| NR5020 | 5.0 | 5.0 | 2.00 | 4.00 | 1.25 | 2.50 |
| NR5030 | 5.0 | 5.0 | 3.00 | 4.00 | 1.25 | 2.50 |
| NR5040 | 5.0 | 5.0 | 4.00 | 4.00 | 1.25 | 2.50 |
■ Electrical Characteristics for NR5015 Series/NR5015系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR5015-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 35.0 | 4.50 |
| NR5015-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 60.0 | 3.50 |
| NR5015-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 65.0 | 3.00 |
| NR5015-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 80.0 | 2.50 |
| NR5015-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 100.0 | 2.10 |
| NR5015-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 150.0 | 1.65 |
| NR5015-100□-S-Z | 10.0 | 100KHZ/0.25V | 200.0 | 1.45 |
★ Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR5020 Series/NR5020系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR5020-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 20.0 | 4.33 |
| NR5020-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 26.0 | 4.10 |
| NR5020-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 38.0 | 3.85 |
| NR5020-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 46.0 | 3.25 |
| NR5020-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 65.0 | 2.40 |
| NR5020-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 92.0 | 2.10 |
| NR5020-100□-S-Z | 10.0 | 100KHZ/0.25V | 125.0 | 1.80 |
| NR5020-150□-S-Z | 15.0 | 100KHZ/0.25V | 180.0 | 1.44 |
| NR5020-220□-S-Z | 22.0 | 100KHZ/0.25V | 250.0 | 1.18 |
| NR5020-330□-S-Z | 33.0 | 100KHZ/0.25V | 370.0 | 0.97 |
| NR5020-470□-S-Z | 47.0 | 100KHZ/0.25V | 560.0 | 0.81 |
★ Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR5040 Series/NR5040系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR5040-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 12.0 | 7.35 |
| NR5040-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 15.0 | 6.30 |
| NR5040-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 19.0 | 4.90 |
| NR5040-2R7□-S-Z | 2.7 | 100KHZ/0.25V | 22.0 | 4.30 |
| NR5040-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 24.0 | 3.95 |
| NR5040-3R9□-S-Z | 3.9 | 100KHZ/0.25V | 27.0 | 3.55 |
| NR5040-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 30.0 | 3.50 |
| NR5040-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 43.0 | 2.90 |
| NR5040-100□-S-Z | 10.0 | 100KHZ/0.25V | 64.0 | 2.35 |
| NR5040-150□-S-Z | 15.0 | 100KHZ/0.25V | 86.0 | 2.00 |
| NR5040-220□-S-Z | 22.0 | 100KHZ/0.25V | 129.0 | 1.60 |
| NR5040-330□-S-Z | 33.0 | 100KHZ/0.25V | 188.0 | 1.30 |
| NR5040-470□-S-Z | 47.0 | 100KHZ/0.25V | 272.0 | 1.10 |
| NR5040-680□-S-Z | 68.0 | 100KHZ/0.25V | 400.0 | 0.90 |
| NR5040-101□-S-Z | 100.0 | 100KHZ/0.25V | 560.0 | 0.70 |
Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
SMD POWER INDUCTORS NR60系列
NR60 SERIES
■ FEATURES/特性
● Magnetically shielded construction (閉磁路構造設計)
● Compact and thin (輕便薄小)
● Strong ability to resist EMI(抗EMI能力強)
● Drop impact resistance is strong, durable(抗沖擊性強,經久耐用)
■ Application (用途)
● Mobile networks and digital movie camera; Flat-panel TVS, set-top boxes, blu-ray DVD; Notebook computers, desktop computers, servers, graphics CARDS; Portable game consoles, personal navigation system, multimedia; Automotive products; Communication equipment(移動網絡和數字電影攝影機;平板電視,機頂盒,藍光DVD、筆記本電腦、臺式電腦、服務器、顯卡;便攜式游戲機,個人導航系統,多媒體,汽車產品;通信設備)
■ Product Identification/產品識別
CR 6020 4R7 M S Z
(1) (2) (3) (4） ?。?） ?。?）
1.Series name/產品名稱
2.Dimensions/產品尺寸
3.Inductance value/電感值
4.Product name/允許公差（J 5%, K 10%, L 15%, M 20%, N 30%）
5.Internal Serial No./內部序列號（S：系列品，T:特殊品）
6.The packing way/包裝方式（Z:冷封裝，R:熱封裝）
■ Mechanical dimensions/機械尺寸
Unit In mm
| Type | A | B | C | D | E | F |
| ±0.3 | ±0.3 | (max) | ±0.3 | ±0.3 | ±0.3 | |
| NR6015 | 6.0 | 6.0 | 1.50 | 4.90 | 1.55 | 2.90 |
| NR6020 | 6.0 | 6.0 | 2.00 | 4.00 | 1.25 | 2.50 |
| NR6028 | 6.0 | 6.0 | 2.80 | 4.00 | 1.25 | 2.50 |
| NR6045 | 6.0 | 6.0 | 4.50 | 4.00 | 1.25 | 2.50 |
■Electrical Characteristics for NR6015 Series/NR6015系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR6015-1R2□-S-Z | 1.2 | 100KHZ/0.25V | 35.0 | 4.20 |
| NR6015-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 50.0 | 3.10 |
| NR6015-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 60.0 | 2.60 |
| NR6015-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 90.0 | 2.10 |
| NR6015-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 115.0 | 1.80 |
| NR6015-100□-S-Z | 10.0 | 100KHZ/0.25V | 155.0 | 1,45 |
| NR6015-150□-S-Z | 15.0 | 100KHZ/0.25V | 220.0 | 1.20 |
| NR6015-220□-S-Z | 22.0 | 100KHZ/0.25V | 320.0 | 1.00 |
★ Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR6020 Series/NR6020系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR6020-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 20.0 | 4.30 |
| NR6020-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 25.0 | 4.25 |
| NR6020-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 35.0 | 3.75 |
| NR6020-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 45.0 | 3.15 |
| NR6020-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 58.0 | 3.00 |
| NR6020-5R6□-S-Z | 5.6 | 100KHZ/0.25V | 70.0 | 2.40 |
| NR6020-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 85.0 | 2.20 |
| NR6020-100□-S-Z | 10.0 | 100KHZ/0.25V | 120.0 | 1.75 |
| NR6020-150□-S-Z | 15.0 | 100KHZ/0.25V | 160.0 | 1.50 |
| NR6020-220□-S-Z | 22.0 | 100KHZ/0.25V | 240.0 | 1.25 |
| NR6020-470□-S-Z | 47.0 | 100KHZ/0.25V | 500.0 | 1.00 |
★ Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR6028 Series/NR6028系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR6028-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 10.0 | 5.75 |
| NR6028-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 13.0 | 5.60 |
| NR6028-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 20.0 | 5.10 |
| NR6028-2R7□-S-Z | 2.7 | 100KHZ/0.25V | 20.0 | 4.80 |
| NR6028-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 25.0 | 4.15 |
| NR6028-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 30.0 | 3.70 |
| NR6028-5R1□-S-Z | 5.1 | 100KHZ/0.25V | 43.0 | 3.20 |
| NR6028-6R2□-S-Z | 6.2 | 100KHZ/0.25V | 47.0 | 3.05 |
| NR6028-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 50.0 | 2.80 |
| NR6028-8R2□-S-Z | 8.2 | 100KHZ/0.25V | 55.0 | 2.50 |
| NR6028-9R1□-S-Z | 9.1 | 100KHZ/0.25V | 74.0 | 2.30 |
| NR6028-100□-S-Z | 10.0 | 100KHZ/0.25V | 76.0 | 2.04 |
| NR6028-120□-S-Z | 12.0 | 100KHZ/0.25V | 80.0 | 1.80 |
| NR6028-150□-S-Z | 15.0 | 100KHZ/0.25V | 125.0 | 1.70 |
| NR6028-180□-S-Z | 18.0 | 100KHZ/0.25V | 130.0 | 1.50 |
| NR6028-220□-S-Z | 22.0 | 100KHZ/0.25V | 140.0 | 1.45 |
| NR6028-270□-S-Z | 27.0 | 100KHZ/0.25V | 155.0 | 1.40 |
| NR6028-330□-S-Z | 33.0 | 100KHZ/0.25V | 185.0 | 1.35 |
| NR6028-360□-S-Z | 47.0 | 100KHZ/0.25V | 215.0 | 1.25 |
Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR6045 Series/NR6045系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR6045-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 10.0 | 9.00 |
| NR6045-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 13.0 | 6.50 |
| NR6045-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 20.0 | 5.30 |
| NR6045-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 24.0 | 4.50 |
| NR6045-5R6□-S-Z | 5.6 | 100KHZ/0.25V | 31.0 | 3.70 |
| NR6045-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 33.0 | 3.30 |
| NR6045-100□-S-Z | 10.0 | 100KHZ/0.25V | 52.0 | 3.00 |
| NR6045-150□-S-Z | 15.0 | 100KHZ/0.25V | 77.0 | 2.50 |
| NR6045-220□-S-Z | 22.0 | 100KHZ/0.25V | 115.0 | 2.00 |
| NR6045-330□-S-Z | 33.0 | 100KHZ/0.25V | 150.0 | 1.60 |
| NR6045-470□-S-Z | 47.0 | 100KHZ/0.25V | 220.0 | 1.40 |
| NR6045-560□-S-Z | 56.0 | 100KHZ/0.25V | 260.0 | 1.30 |
| NR6045-680□-S-Z | 68.0 | 100KHZ/0.25V | 290.0 | 1.20 |
| NR6045-101□-S-Z | 100.0 | 100KHZ/0.25V | 430.0 | 1.00 |
Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
SMD POWER INDUCTORS NR80系列
NR80 SERIES
■ FEATURES/特性
● Magnetically shielded construction (閉磁路構造設計)
● Compact and thin (輕便薄小)
● Strong ability to resist EMI(抗EMI能力強)
● Drop impact resistance is strong, durable(抗沖擊性強,經久耐用)
■ Application (用途)
● Mobile networks and digital movie camera; Flat-panel TVS, set-top boxes, blu-ray DVD; Notebook computers, desktop computers, servers, graphics CARDS; Portable game consoles, personal navigation system, multimedia; Automotive products; Communication equipment(移動網絡和數字電影攝影機;平板電視,機頂盒,藍光DVD、筆記本電腦、臺式電腦、服務器、顯卡;便攜式游戲機,個人導航系統,多媒體,汽車產品;通信設備)
■ Product Identification/產品識別
CR 8020 2R2 M S Z
(1) (2) (3) (4） ?。?） ?。?）
1.Series name/產品名稱
2.Dimensions/產品尺寸
3.Inductance value/電感值
4.Product name/允許公差（J 5%, K 10%, L 15%, M 20%, N 30%）
5.Internal Serial No./內部序列號（S：系列品，T:特殊品）
6.The packing way/包裝方式（Z:冷封裝，R:熱封裝）
■ Mechanical dimensions/機械尺寸
Unit In mm
| Type | A | B | C | D | E | F |
| ±0.3 | ±0.3 | (max) | ±0.3 | ±0.3 | ±0.3 | |
| NR8040 | 8.0 | 8.0 | 4.20 | 6.30 | 2.20 | 4.00 |
■ Electrical Characteristics for NR8040 Series/NR8040系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR8040-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 8.0 | 9.85 |
| NR8040-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 10.0 | 8.15 |
| NR8040-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 12.0 | 7.10 |
| NR8040-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 17.0 | 6.50 |
| NR8040-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 20.0 | 5.90 |
| NR8040-5R6□-S-Z | 5.6 | 100KHZ/0.25V | 24.0 | 5.50 |
| NR8040-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 28.0 | 4.55 |
| NR8040-8R2□-S-Z | 8.2 | 100KHZ/0.25V | 35.0 | 4.20 |
| NR8040-100□-S-Z | 10.0 | 100KHZ/0.25V | 37.0 | 3.60 |
| NR8040-150□-S-Z | 15.0 | 100KHZ/0.25V | 56.0 | 2.95 |
| NR8040-220□-S-Z | 22.0 | 100KHZ/0.25V | 74.0 | 2.40 |
| NR8040-330□-S-Z | 33.0 | 100KHZ/0.25V | 100.0 | 2.05 |
| NR8040-470□-S-Z | 47.0 | 100KHZ/0.25V | 158.0 | 1.75 |
| NR8040-680□-S-Z | 68.0 | 100KHZ/0.25V | 196.0 | 1.45 |
| NR8040-101□-S-Z | 100.0 | 100KHZ/0.25V | 295.0 | 1.15 |
| NR8040-151□-S-Z | 150.0 | 100KHZ/0.25V | 470.0 | 1.10 |
| NR8040-221□-S-Z | 220.0 | 100KHZ/0.25V | 660.0 | 0.85 |
| NR8040-331□-S-Z | 330.0 | 100KHZ/0.25V | 970.0 | 0.68 |
★ Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
在線留言
經過全體成員上下的不懈努力,以及雄厚的技術力量和優質的產品品質，已為一些知名臺資、港資、內資、韓資SMD生產企業OEM、ODM，并且得到他們一致好評，愿為更多知名企業提供優質的服務。
聯系我們
深圳市三拓電子有限公司
--------------
地址：
深圳市龍華區觀瀾街道鷺湖社區觀盛二路5號捷順科技中心B1207
總經理：查軍明 電話：133-1693-9098 QQ：1427434255
經理：陳小姐 電話：134-2403-0900 QQ：945984380
在線留言
