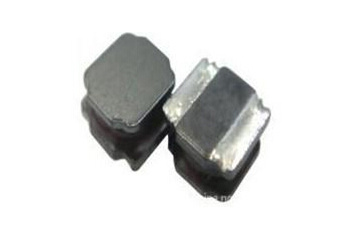

SMD POWER INDUCTORS NR60系列
NR60 SERIES
■ FEATURES/特性
● Magnetically shielded construction (閉磁路構造設計)
● Compact and thin (輕便薄小)
● Strong ability to resist EMI(抗EMI能力強)
● Drop impact resistance is strong, durable(抗沖擊性強,經久耐用)
■ Application (用途)
● Mobile networks and digital movie camera; Flat-panel TVS, set-top boxes, blu-ray DVD; Notebook computers, desktop computers, servers, graphics CARDS; Portable game consoles, personal navigation system, multimedia; Automotive products; Communication equipment(移動網絡和數字電影攝影機;平板電視,機頂盒,藍光DVD、筆記本電腦、臺式電腦、服務器、顯卡;便攜式游戲機,個人導航系統,多媒體,汽車產品;通信設備)
■ Product Identification/產品識別
CR 6020 4R7 M S Z
(1) (2) (3) (4） ?。?） ?。?）
1.Series name/產品名稱
2.Dimensions/產品尺寸
3.Inductance value/電感值
4.Product name/允許公差（J 5%, K 10%, L 15%, M 20%, N 30%）
5.Internal Serial No./內部序列號（S：系列品，T:特殊品）
6.The packing way/包裝方式（Z:冷封裝，R:熱封裝）

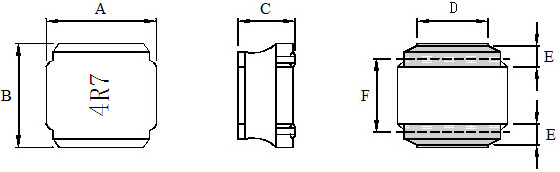

■ Mechanical dimensions/機械尺寸
Unit In mm
| Type | A | B | C | D | E | F |
| ±0.3 | ±0.3 | (max) | ±0.3 | ±0.3 | ±0.3 | |
| NR6015 | 6.0 | 6.0 | 1.50 | 4.90 | 1.55 | 2.90 |
| NR6020 | 6.0 | 6.0 | 2.00 | 4.00 | 1.25 | 2.50 |
| NR6028 | 6.0 | 6.0 | 2.80 | 4.00 | 1.25 | 2.50 |
| NR6045 | 6.0 | 6.0 | 4.50 | 4.00 | 1.25 | 2.50 |
■ Electrical Characteristics for NR6015 Series/NR6015系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR6015-1R2□-S-Z | 1.2 | 100KHZ/0.25V | 35.0 | 4.20 |
| NR6015-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 50.0 | 3.10 |
| NR6015-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 60.0 | 2.60 |
| NR6015-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 90.0 | 2.10 |
| NR6015-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 115.0 | 1.80 |
| NR6015-100□-S-Z | 10.0 | 100KHZ/0.25V | 155.0 | 1,45 |
| NR6015-150□-S-Z | 15.0 | 100KHZ/0.25V | 220.0 | 1.20 |
| NR6015-220□-S-Z | 22.0 | 100KHZ/0.25V | 320.0 | 1.00 |
★ Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR6020 Series/NR6020系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR6020-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 20.0 | 4.30 |
| NR6020-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 25.0 | 4.25 |
| NR6020-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 35.0 | 3.75 |
| NR6020-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 45.0 | 3.15 |
| NR6020-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 58.0 | 3.00 |
| NR6020-5R6□-S-Z | 5.6 | 100KHZ/0.25V | 70.0 | 2.40 |
| NR6020-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 85.0 | 2.20 |
| NR6020-100□-S-Z | 10.0 | 100KHZ/0.25V | 120.0 | 1.75 |
| NR6020-150□-S-Z | 15.0 | 100KHZ/0.25V | 160.0 | 1.50 |
| NR6020-220□-S-Z | 22.0 | 100KHZ/0.25V | 240.0 | 1.25 |
| NR6020-470□-S-Z | 47.0 | 100KHZ/0.25V | 500.0 | 1.00 |
★ Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR6028 Series/NR6028系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR6028-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 10.0 | 5.75 |
| NR6028-1R5□-S-Z | 1.5 | 100KHZ/0.25V | 13.0 | 5.60 |
| NR6028-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 20.0 | 5.10 |
| NR6028-2R7□-S-Z | 2.7 | 100KHZ/0.25V | 20.0 | 4.80 |
| NR6028-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 25.0 | 4.15 |
| NR6028-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 30.0 | 3.70 |
| NR6028-5R1□-S-Z | 5.1 | 100KHZ/0.25V | 43.0 | 3.20 |
| NR6028-6R2□-S-Z | 6.2 | 100KHZ/0.25V | 47.0 | 3.05 |
| NR6028-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 50.0 | 2.80 |
| NR6028-8R2□-S-Z | 8.2 | 100KHZ/0.25V | 55.0 | 2.50 |
| NR6028-9R1□-S-Z | 9.1 | 100KHZ/0.25V | 74.0 | 2.30 |
| NR6028-100□-S-Z | 10.0 | 100KHZ/0.25V | 76.0 | 2.04 |
| NR6028-120□-S-Z | 12.0 | 100KHZ/0.25V | 80.0 | 1.80 |
| NR6028-150□-S-Z | 15.0 | 100KHZ/0.25V | 125.0 | 1.70 |
| NR6028-180□-S-Z | 18.0 | 100KHZ/0.25V | 130.0 | 1.50 |
| NR6028-220□-S-Z | 22.0 | 100KHZ/0.25V | 140.0 | 1.45 |
| NR6028-270□-S-Z | 27.0 | 100KHZ/0.25V | 155.0 | 1.40 |
| NR6028-330□-S-Z | 33.0 | 100KHZ/0.25V | 185.0 | 1.35 |
| NR6028-360□-S-Z | 47.0 | 100KHZ/0.25V | 215.0 | 1.25 |
Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for NR6045 Series/NR6045系列電子特性規格
| Part Number | Inductance | Test Freq. | DCR (mΩ) | IDC (A) |
| (μH) | (Hz) | (max) | (max) | |
| 產品料號 | 電感值 (L) | 測試頻率 | 直流阻抗 | 定格電流 |
| NR6045-1R0□-S-Z | 1.0 | 100KHZ/0.25V | 10.0 | 9.00 |
| NR6045-2R2□-S-Z | 2.2 | 100KHZ/0.25V | 13.0 | 6.50 |
| NR6045-3R3□-S-Z | 3.3 | 100KHZ/0.25V | 20.0 | 5.30 |
| NR6045-4R7□-S-Z | 4.7 | 100KHZ/0.25V | 24.0 | 4.50 |
| NR6045-5R6□-S-Z | 5.6 | 100KHZ/0.25V | 31.0 | 3.70 |
| NR6045-6R8□-S-Z | 6.8 | 100KHZ/0.25V | 33.0 | 3.30 |
| NR6045-100□-S-Z | 10.0 | 100KHZ/0.25V | 52.0 | 3.00 |
| NR6045-150□-S-Z | 15.0 | 100KHZ/0.25V | 77.0 | 2.50 |
| NR6045-220□-S-Z | 22.0 | 100KHZ/0.25V | 115.0 | 2.00 |
| NR6045-330□-S-Z | 33.0 | 100KHZ/0.25V | 150.0 | 1.60 |
| NR6045-470□-S-Z | 47.0 | 100KHZ/0.25V | 220.0 | 1.40 |
| NR6045-560□-S-Z | 56.0 | 100KHZ/0.25V | 260.0 | 1.30 |
| NR6045-680□-S-Z | 68.0 | 100KHZ/0.25V | 290.0 | 1.20 |
| NR6045-101□-S-Z | 100.0 | 100KHZ/0.25V | 430.0 | 1.00 |
Operating Temp. : －45℃ ~ ＋125℃
★ Inductance drop=30% typ. at IDC.
